SYS-212B-FN2T

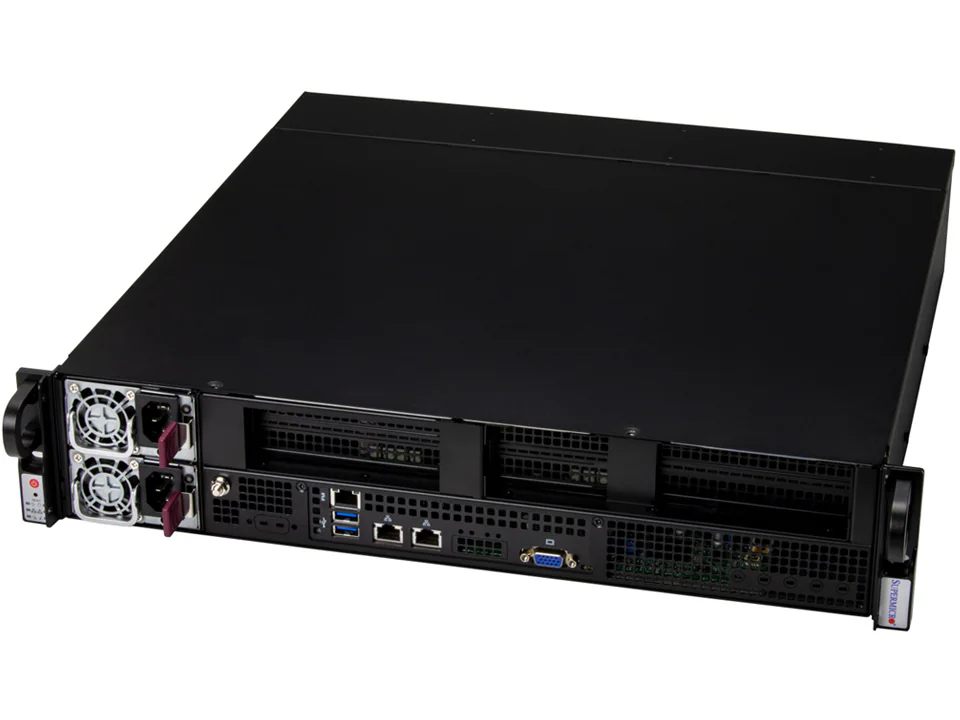

SYS-212B-FN2T View Larger Image
  • Single Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
  • Up to 2TB ECC RDIMM DDR5-6400MT/s or up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots
  • Optional PCIe slot configurations up to 4 PCIe 5.0 x16 (3 FHFL+1 HHHL) slots with support for double-width GPU/Accelerator cards
  • 2x M.2 M-Key NVMe 2280/22110
  • 2x RJ45 10GbE LAN and 1xRJ45 1GbE dedicated IPMI LAN
  • Optional 4 rear 2.5″ hot-swap NVMe drive bays
  • Onboard TPM9672: TCG2.0, FIPs 140-2 Level 2, Intel TXT and Microsoft Windows certification
Download PDF

    Get a Quote

    Customer Details








    Specifications

    Chipset

    System on Chip

    Dimensions

    H: 3.5" (89 mm) x W: 17.2" (437 mm) x D: 17.72" (450 mm)

    I/O Slots

    Up to 7 x PCIe 3.0 plus dedicated PERC slot

    Network Controller

    2 x USB 3.2 Gen1 Type-A ports(front)
    1 x VGA port
    1 x TPM Onboard TPM & TPM Header
    1 x RJ45 1 GbE Dedicated BMC LAN port
    2 x RJ45 10 GbE LAN ports

    Processor

    Intel® Xeon® 6700/6500 Series Processors

    Processor Generation

    Granite Rapids

    Rack Support

    ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

    RAID

    NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

    SKU

    SYS-212B-FN2T

    Storage

    Default: Total 4 bays 4 rear hot-swap 2.5" NVMe* drive bays
    2 x M.2 NVMe slots (M-key 2280/22110)

    System Management

    SuperCloud Composer®
    Supermicro Server Manager (SSM)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
