MX2-10ADP

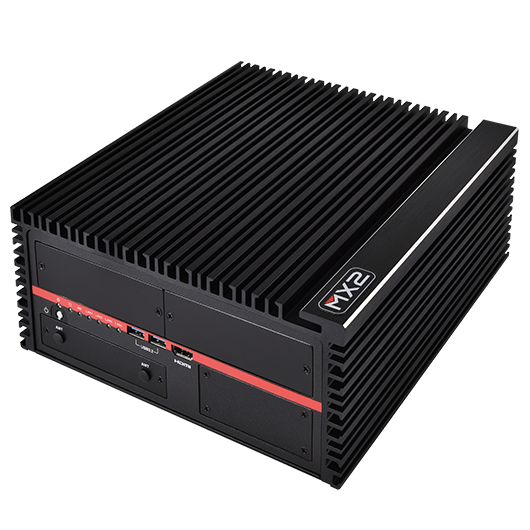

MX2-10ADP View Larger Image
  • AI Inference
  • Intel® Raptor Lake-S Refresh 14th/Raptor Lake-S 13th/Alder Lake-S 12th Core-i processor (Up to 65W)
  • Supports 2 x DDR5 SO-DIMM (Up to 96GB)
  • HDMI, DisplayPort, VGA, 4 x 2.5G LAN (Supports TSN)
  • Supports 8 x USB, 3 x RS232/422/485, and 8-bit DIO
  • 9~48V Wide Power Range with Advanteced Power Protection Design
  • Qualified by Intel® Edge program as Edge Controls for Industrial (ECI)
Download PDF

    Get a Quote

    Customer Details








    Specifications

    Front I/O

    1 x HDMI 1.4
    2 x USB 3.2 Gen2
    2 x SIM Card Slot w/ Cover
    1 x 2.5" SATAIII HDD / SSD Bay

    Graphics

    Intel® UHD Graphics

    Storage

    2 x 2.5 HDD/SSD (1 w/ Removable HDD Bay, 1 w/ Internal HDD Bracket)
    1 x M.2 2280/2260/2242 NVMe / SATA SSD
    1 x M.2 2242/2260 SATA SSD
    1 x mSATA

    Mounting Options

    Wallmount

    Rear I/O

    4 x RJ-45
    6 x USB 3.2 Gen 2 (10 Gbps)
    3 x RS232 / 422 / 485 (Support Power 5V / 12V)
    6 x SMA Antenna (Optional for WiFi/LTE function)
    1 x 8-bit GPIO (in DB9 Connector)
    1 x DisplayPort 1.2
    1 x VGA
    1 x Mic-in
    1 x Line-out
    1 x PCIe x16 slot
    1 x 2-pin Terminal Block Remote Power Reset
    1 x 3-pin Terminal Block Power Input
    1 x 2-pin Terminal Block Remote Power on / off

    Memory Type

    DDR5 SODIMM

    Processor Generation

    Raptor Lake

    Input Voltage

    9~48V Wide Range DC Input w/ Terminal Block Connectivity

    Processor

    14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 65W)®*Please see the CPU Options in Docs / Manuals

    Operating Temp

    35W TDP Processor: -40°C to 70°C
    65W TDP Processor: -40°C to 50°C / with 0.7m/s Air Flow and Wide Temperature Memory/Storage

    SKU

    MX2-10ADP

    Accessories

    1 x Quick Installation Guide
    1 x CPU Cooler (passive)
    1 x Wall Mount Brackets
    1 x 3 pin Terminal Block Power Connector
    2 x 2 pin Terminal Block Male Connector
    1 x 30 cm SATA & SATA PWR Y Cable (3rd SSD/HDD needs optional SATA Y cable)

    Certifications

    CE
    FCC Class A
    LVD CoC: EN62368-1
    *E13-Mark/EN50155/EN50121/EN45545-2 by request

    Dimensions

    (WxDxH): 10.6” x 9.7” x 4.3” (268 x 246 x 108 mm)

    Memory Capacity

    up to 96 GB

    LAN Controller

    4 x Intel® I226-LM 2.5G LAN / *Optional 4 x PoE 802.3at Xpansion "MS-01PON-S10"

    Expansion

    1 x M.2 2230/ 2242 / 2260 / 2280 M key (PCIeX4 NVME, SATAIII)
    1 x mPCIe Full / Half size (USB2.0 / PCIeX1 / SATAIII)
    1 x M.2 2230 E key (CNVi , PCIeX1, USB 2.0)
    1 x M.2 3052 / 3042 / 2242 / 2260 B key (USB3.0 , SATAIII, PCIeX1) w/ 2 x SIM slot
    PCIe 4.0 X16 slot

    Memory Slots

    2 x SODIMM

    Memory Speed

    4800 MHz

    Power Interface

    Terminal Block
